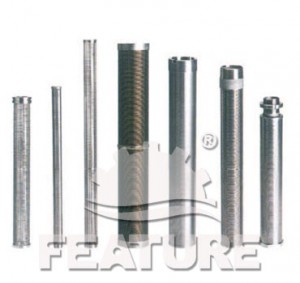

Feature-Tec’s Wedge Mesh Cartridge (RS) uses a wedge filtration mesh, which is welded together with the supporting structure. The high filtration area of the cartridge is achieved from the structural arrangement of the metal wedge mesh, through the spaces between the parallel wedge wires increasing the filtration area.
Feature-Tec is able to assure high product standards through our strong production capacity, being able to fabricate a cartridge with dimensions from 21-956mm in diameter and up to 6000mm (6metres) in length. In addition, Feature-Tec is also able to fabricate flat wedge wire screens with dimensions up to 2800x4500mm
Through our extensive production standards and powerful production equipment, Feature-Tec’s RS filters are able to meet various customers’ requirements.
Applications:
- Soild/liquid separation
- Catalyst recovery
- Resin filtration
- Carbon filtration
- Wastewater/sewage filtration
- Screening systems
Features:
- Strong welded structure with high mechanical strength
- Absolute precision filtration
- Up to 25 μm filtration accuracy
- Increased filtration area to prevent surface clogging/chocking
| Filter Type | Filter Mesh Type | Material | Length | Connection | Seal Ring | Filtration Accuracy (μm) |
| ELC – Liquid Filter | SM-Sintered Mesh | E – SS304 | 05-05″ | 2-226 Blunt End | B-Buna N | 0.5 |
| EGC – Gas Filter | SP-Sintered Powder | S – SS316L | 10-10″ | 4-226 Wing Tip | V-Viton | 10 |
| RM-Winding Wire | 20-20″ | 6-222 Wing Tip | S-Silicon | … | ||
| RS-Wedge Wire | 30-30″ | 7-DEO Dual Opening | E-EPDM | 500 | ||
| SF-Sintered Mat | 40-40″ | 9-Nipple Connection | ||||
| PSF-Folded Felt | 60-60″ |
