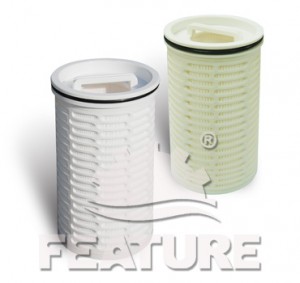

Jumbo Series Filter Cartridges are large, single opening pleated filter cartridges categorized into general and high temperature applications. With Jumbo’s unique pleated technology and an inside-to-out flow direction similar to a filter bag, these cartridges have a high dirt holding capacity, longer lifespan and reduces production costs. The inside-to-out flow direction reduces the risk of side leakage, increasing the filtration accuracy.
Jumbo is available in both nominal and absolute accuracy, suitable for meeting high filtration efficiency requirements for demanding and critical applications.
Product Features:
- Reduced risk caused by leakage to ensure filtration quality
- Concise design facilitates installation and moving, reduces labor cost caused by replacing filter and ensures safety
Operating Environment:
- Maximum operation pressure difference: 3.5kg/cm²
- Maximum operation temperature:
- GT Series: 80°C
- HT Series: 120°C
- Recommended flow rate: 50³/hr/40″
Technical Specifications:
- GT Series:
- Micron Rating: 0.5, 1.5, 10, 25, 40, 70, 100 µm
- Filter Material: Polypropylene (PP)
- Core Material: Glass Filled Polypropylene (GFPP)
- HT Series:
- Micron Rating: 1, 5, 10, 25 µm
- Filter Material: Fiberglass (FG)
- Core Material: Polybutylene Terephthalate (PBT)
- Length: 20″, 40″, 60″, 80″
- Outer Diameter: 6″
Product Applications:
- Food & Beverage:
- Beer & Wine
- High Fructose Corn Syrup
- Soft (Carbonated) Drinks
- Dairy Products
- Juices
- Bottled Water
- Pre-Reverse Osmosis
- Oil& Gas, Chemical Applications:
- Chemical Plants
- Oil Refineries
- Amine Applications
- Acid & alkali filtration
- Organic Solvents
- Resin treatment
- Water Treatment
- Inflow water filtration
- Active carbon bed
- Deep well
- Desalting
- Groundwater filtration
- Scouring water
- Wastewater
- Fixative fluid
Type Selection:
| Filter Element Type | Outer Diameter | Cartridge Length | Element Material | Filtration Accuracy (μm) | Seal Material |
| JAF – Absolute Rating
JEF – Nominal Rating |
6 – 6″ | 20 – 20″ | PP – PP | 1 - 1μm | E – EPDM |
| 40 – 40″ | 5 - 5μm | B – Buna N | |||
| 60 – 60″ | FG – Fiberglass | … | S – Silicone | ||
| 80 – 80″ | 100 - 100μm | V – Viton |
