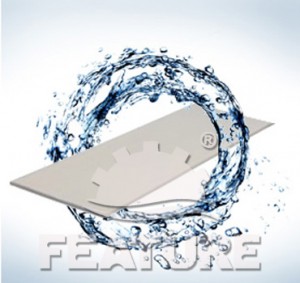

Feature-Tec’s ceramic sheet is a hollow ceramic membrane featuring excellent physical properties such as corrosion resistance, and a unique plate design to increase the filtration area. In addition, the plate membrane system has a very small footprint, and is widely used in the water treatment industry.

Product Description

Film Shape	Hollow Ceramic Sheet
Filtration Method	External pressure/self priming
Material	Al₂O₃
Standard Aperture	0.1 µm
Dimension	500 x 250 x 3
Effective Filtration Area	0.25m₂
Pure Water Permeability	600L/(m².h)
Particle Capturing Performance	>95% @0.1 µm
pH Value	2-12
Operating Temperature	80°C



Features

• Excellent physical properties
  • Corrosion resistant
  • Suitable for separating hard particles from water
  • Used in reducing pretreatment system to protect downstream membranes
• Reliable and long lifespan
  • Longer lifespan than organic films in pharmaceutical and heated applications
• Easy maintenance
  • Dispensing of contaminants through backwashing possible during routine maintenance
  • Surface contaminants easily removed through pressurized liquid/air.
• Energy saving
  • Plate structure allows effective cleaning of the membrane surface through the use of air
  • Small amount pressurized air required
• Hydrophilic ceramic membrane effectively reduces the pressure drop to save energy
• More than 50% throughput compared to ultrafiltration organic polymers

Applications

• Oilfield water
• Geothermal water
• Industrial wastewater treatment
• Ultrafiltration
